Product Description

Performance
Performance Index of Water Electrolysis Hydrogen Production Equipment
Hydrogen Production 5m3/Nh
Oxygen Production 2.5m3/Nh
Hydrogen Purity ≥99.9%
Oxygen Purity ≥99.9%
System Working Pressure 2.5～3.2MPa
Electrolyzer Working Temperature80～85℃
Electrolyzer Rated Working Current DC500A
Electrolyzer Rated Working Voltage DC48V

Xiamen Zhongxinda Hydrogen Energy Technology Co., Ltd

www.zxdh2.com | sales1@zxdh2.com

Technical Specifications

Company Information

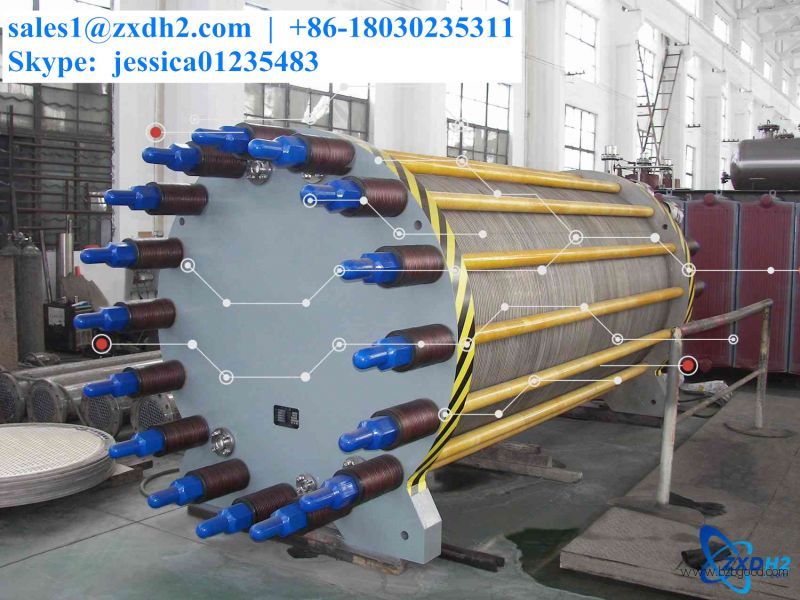

The electrolytic cell body is a bipolar filter press type plate and frame structure, adopts a special sealing structure and materials, and has no leakage in long-term operation.
The high operating pressure of the device saves the investment in compressors and large-capacity wet storage tanks.
The load adaptability is strong, and the operating pressure and output are continuously adjustable below the rated value.
The current efficiency is high, and the energy consumption is much lower than that of the atmospheric tank.
Microprocessor control, automatic operation, complete fault alarm protection function.
All parts in contact with media are made of high-quality stainless steel or nickel-plated on the surface to improve corrosion resistance.
long lasting.
It is small in size and light in weight. The whole set of generator is assembled with an integrated frame structure, which is convenient for installation and transportation.
Complete supporting facilities and diverse options can help users obtain the best economical configuration.
