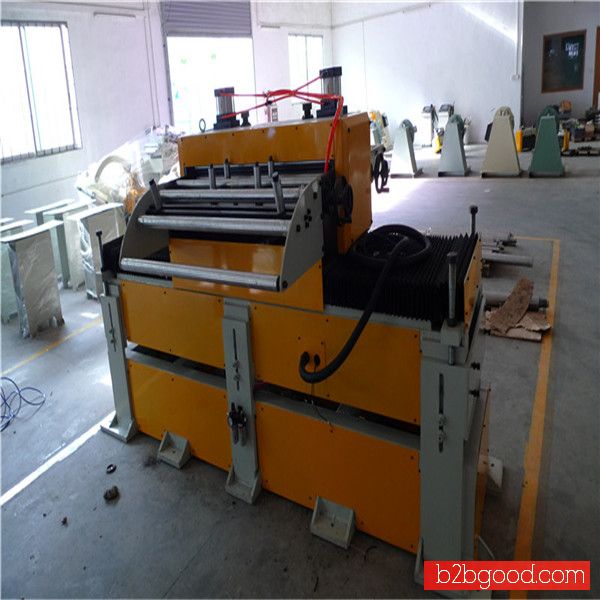

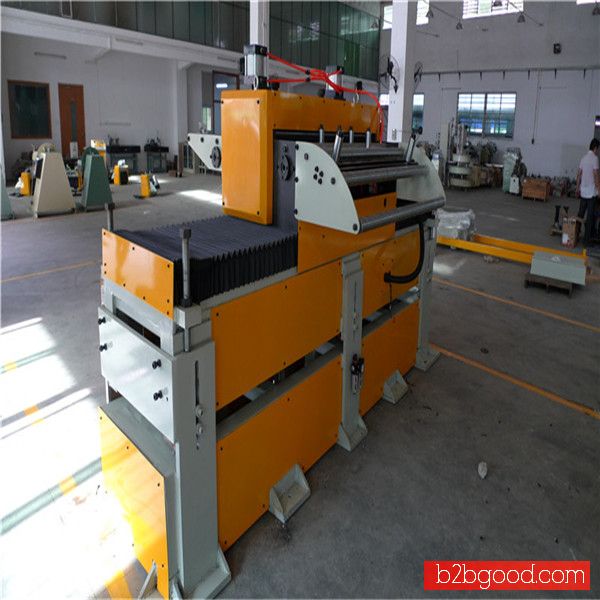

Zig-Zag Servo Feed

1 HIgh output: It can finish many times shift. It can save 70% material in every move, basis on the calculation of the 60° corner. It will change the corner distribution according to the width of material that can increase the material utilization.

2 HIgh efficiency:the feeding speed can meet 60 times/min;

3 High- precision:In the process of continous punch, it can set the min.distance between both sides within 0.5mm;the error of every move can make sure within ±0.08mm;

4 Cover the space is little, the energy consumption is low;

5 The product will drop out the coveryor after the punched, and then will send to the material platform by the coveryor;

6 Complete automation control, can save labor resource; When the production line working, it just need one staff to operate the electric box.Input the operational program on the manual panel, the machines can complete automatic produce.

main specification :
model : NCZ-1600
material width : 1600 mm
material thickness : 0.3-3.2 mm
feeding roller O.D: 120 MM
quantity of feeding roller : 4
straightener roll O.D:120 MM
quantity of straightening roller : 5
max .moving distance : 1600 mm
material press method : worm and gear
